รายละเอียดสินค้า MAINBOARD (1700) BIOSTAR B660M SILVER DDR4
อ้างอิงจาก:https://www.biostar.com.tw
Sale

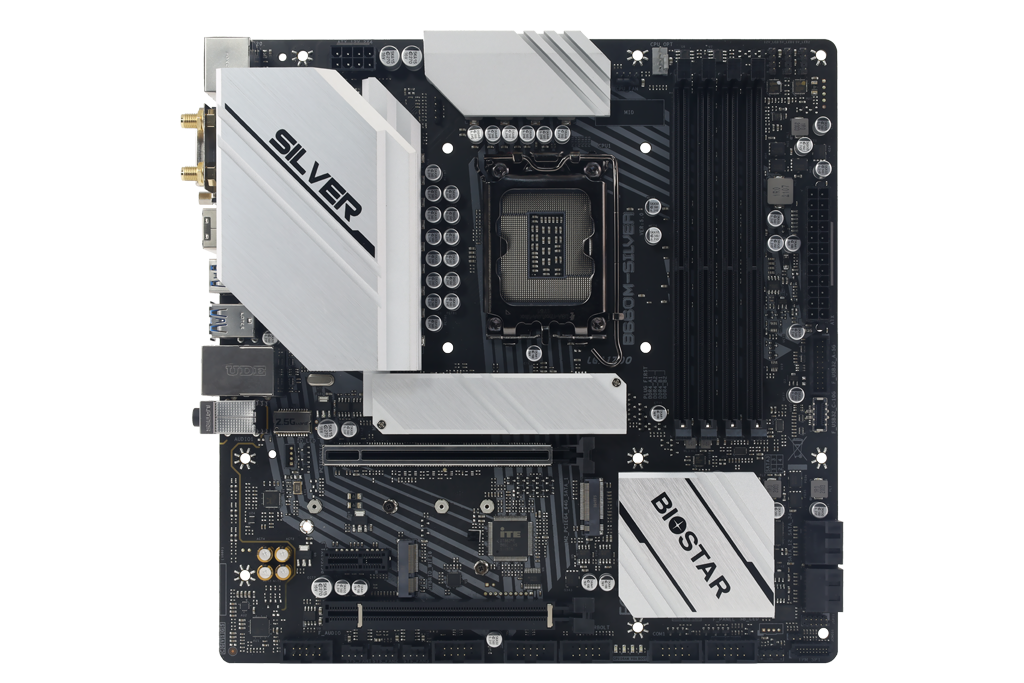

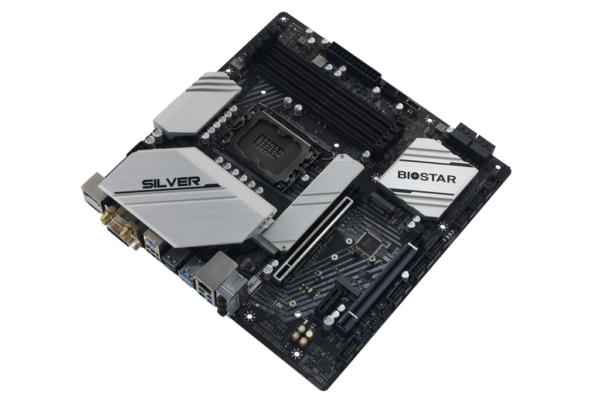

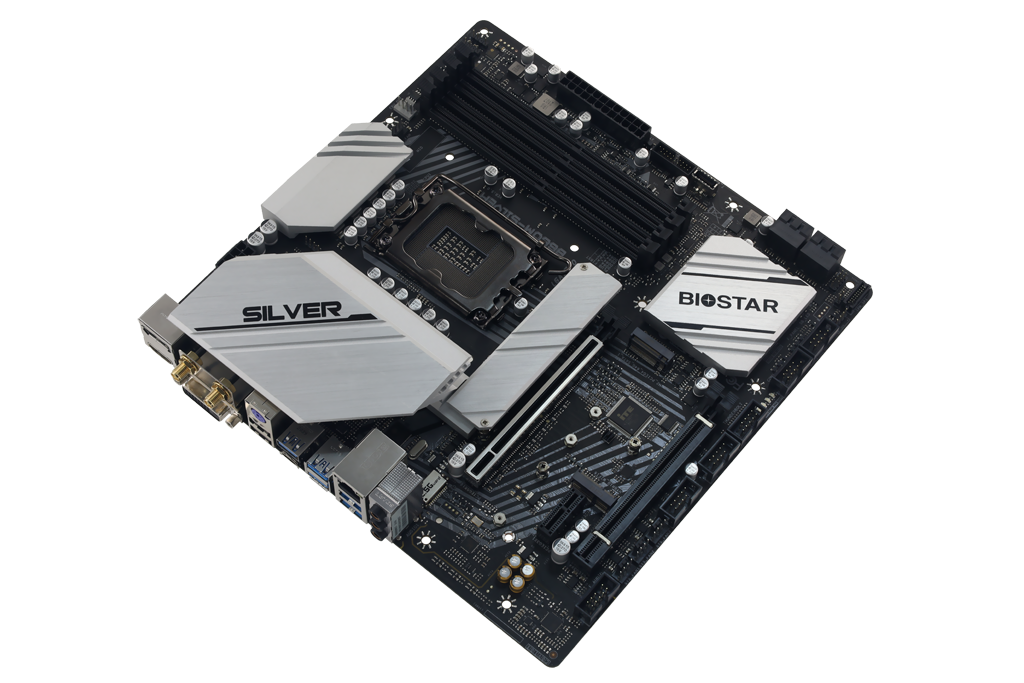

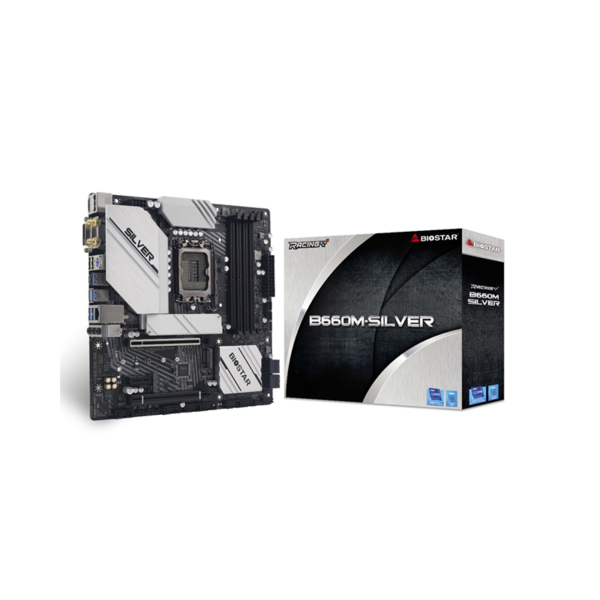

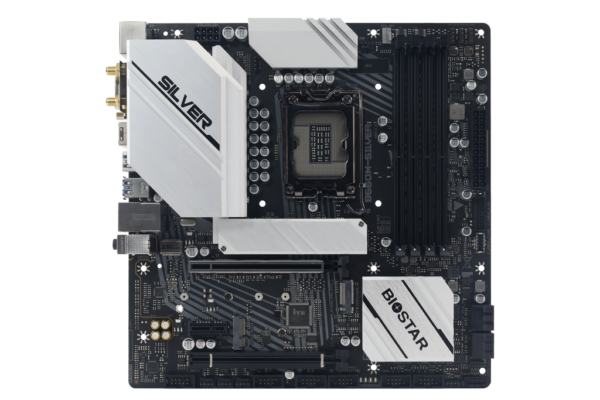

MAINBOARD (1700) BIOSTAR B660M SILVER DDR4
- Supports 12th Generation Intel Core™ Processor
- Intel B660 single chip architecture
- Supports 4-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4133(OC)/4333(OC)/ 5000+(OC) up to 128 GB Memory
- Supports PCIe 5.0
- Supports PCIe M.2 4.0 (64Gb/s)
- Supports Intel Optane Technology
- Supports HDMI 2.0
- Supports 2.5 GbE LAN
- Supports USB 3.2 Gen2 Type C
- Support WiFi 6 & 6E module (No WiFi card included)
- ประกัน 3 ปี
Original price was: ฿5,290.00.฿5,190.00Current price is: ฿5,190.00.
Buy Nowคุณสมบัติ MAINBOARD (1700) BIOSTAR B660M SILVER DDR4
| Brand | BIOSTAR |
| Model | B660M-SILVER |
| CPU Support | Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/Intel Celeron processors in the LGA1700 package * Please refer to www.biostar.com.tw for CPU support list. |
| Socket | 1700 |
| Chipset | Intel B660 |
| Memory Support | Supports Dual Channel DDR4-1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4133(OC)/ 4300(OC)/ 5000+(OC) 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list. |
| Memory Type | DDR4 |
| Memory Bus | 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4133(OC)/ 4300(OC)/ 5000+(OC) |
| Memory Slot | 4 |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Multi Graphic Support | N/A |
| Audio | ALC1220 7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear) |
| Expansion Slots | 1 x PCIe 3.0 x1 Slot 1 x PCIe 5.0 x16 Slot (x16 mode) 1 x PCIe 3.0 x16 Slot (x4 mode) |
| Storage | - Total supports 2x M.2 socket and 4x SATA III (6Gb/s) ports 4x SATA III Connector (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 1 x M.2 (M Key) Socket (M2_PCIEG4_64G): Supports M.2 Type 2280 SSD module Supports PCI-E 4.0 x4 (64Gb/s) 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s)SSD |
| USB | 2 x USB 3.2 (Gen2) Type-C port (1 on rear I/O and 1 via internal headers) 5 x USB 3.2 (Gen2) port (5 on rear I/Os) 2 x USB 3.2(Gen1) port (2 via internal headers) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers) |
| Internal I/O Connectors | 4 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type C Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 3 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt 3 Header 2 x LED Header (5V) 1 x LED Header (12V) * M.2 (E key) Wi-Fi card is not provided |

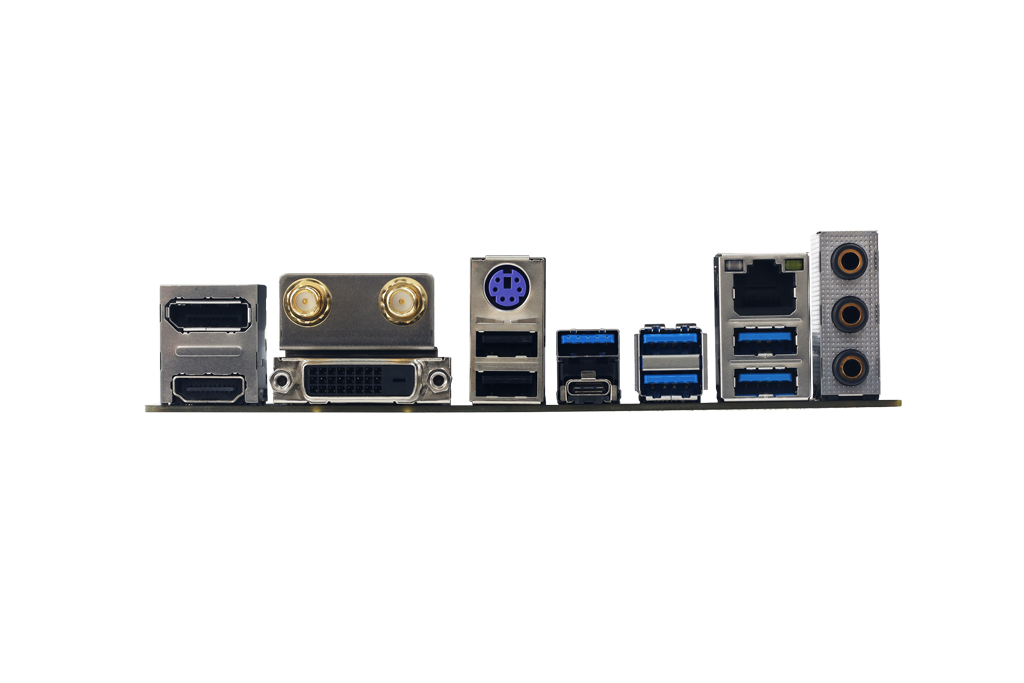

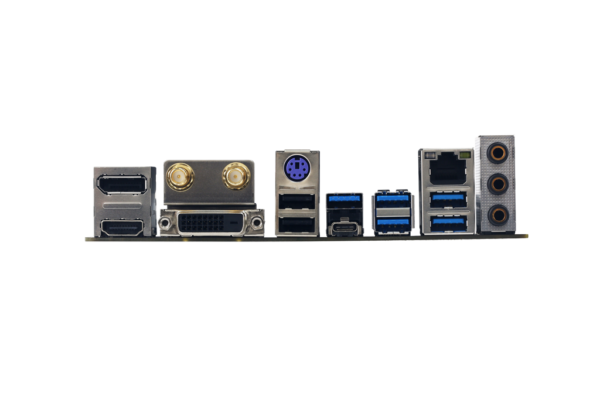

| Back Panel Connectors | 2 x WIFI Antenna Port 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI Port (HDMI2.0) 1 x DP Port 1 x DVI-D Port 1 x USB 3.2 (Gen2) Type-C Port 5 x USB 3.2 (Gen2) Port 2 x USB 2.0 port 1 x LAN port 3 x Audio Jack |
| LAN | Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
| Wireless Data Network | N/A |
| Form Factor | Micro ATX Form |
| H/W Monitoring | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | Racing GT Utility BullGuard |
| Operating System Support | Supports Windows 10(64bit) / 11(64bit) *Biostar reserves the right to add or remove support for any OS with or without notice. |
| Package Dimension | (W x D x H) : 27.50 x 26.00 x 6.00 cm |
| Gross Weight | 2.86 KG |
| Volume | 4,290.00 cm3 |
